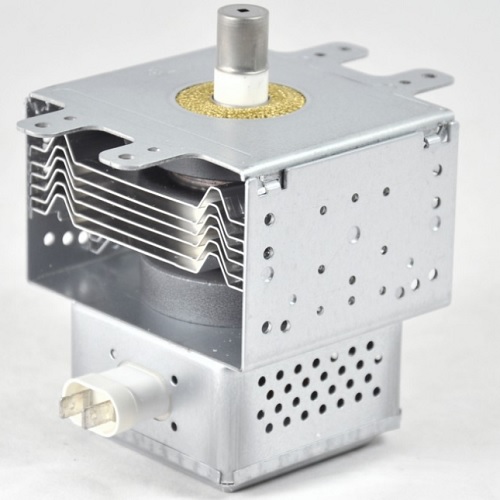

Description
Specifications
| Parameter | Typical Ratings | Maximum Rating |
|---|---|---|
| Operational Frequency | 2460 MHz. | 2445 MHz - 2470 MHz |
| Output Power | 1000 W | |
| Filament Voltage | 3.3 V | 2.9 V - 3.7 V |
| Filament Current | 10.0 A | |
| Anode Voltage | 4.0 kV | 4.5 kV |
| Anode Current | 320 mA | 370 mA |
| Approx. Weight | 0.9 kg | |
| Air flow rate | 1.1 m ³ /min. |
