2450MHz(S-Band) Forced air-cooled
2M107A is forced air-cooled 2450MHz continuous wave magnetron.
It has ferrite Magnet & probe output which delivers the output upto 870W with matched load.
It has probe output & it is recommended to launch the output into the rectangular waveguide or into the oven cavity directly.
It is available in following configuration.
2M107A-605 has mounting & connector are not in the direction with airflow.
2M107A-795 has mounting, air flow as well as connector in same directions.
2M107A-825 has mounting, air flow are not in the direction with connector.

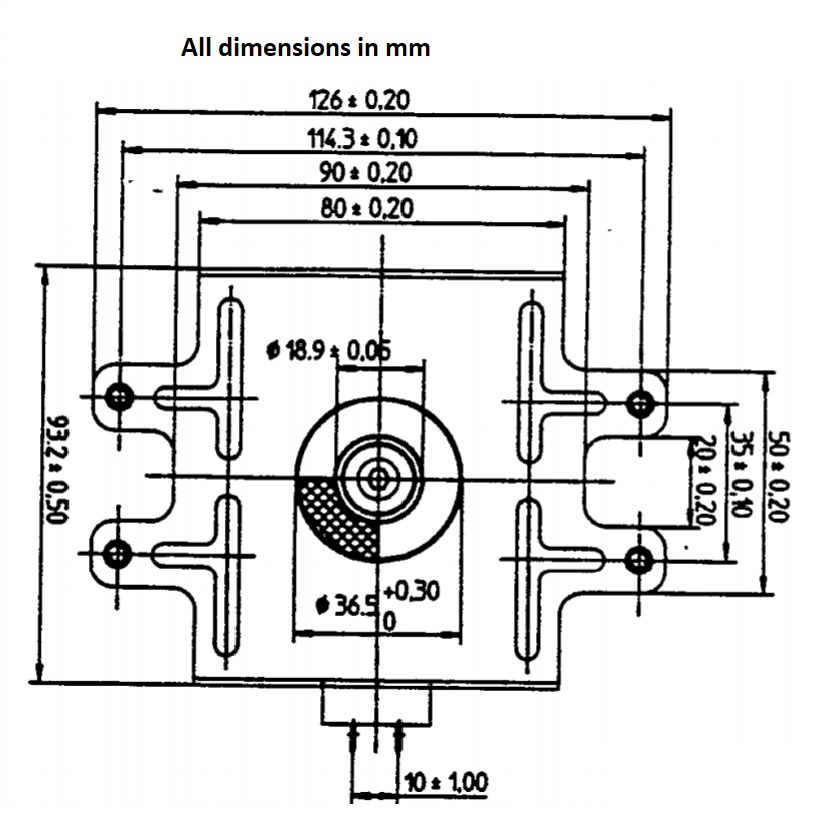

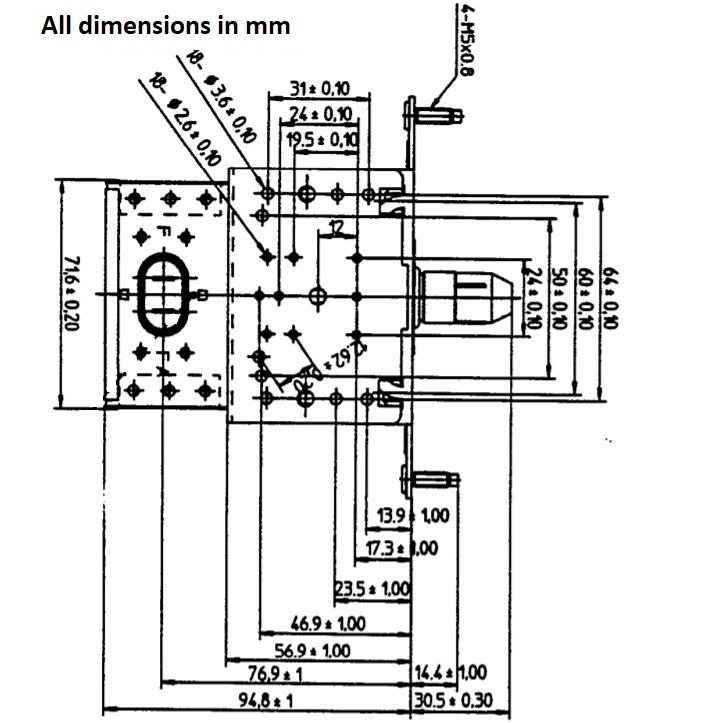

| Parameter | Typical Ratings | Maximum Rating |
|---|---|---|
| Operational Frequency | 2460 MHz. | 2445 MHz - 2470 MHz |
| Continuous Wave output Power | 870 W | |
| Filament Voltage | 3.3 V | 2.80 V - 3.75 V |
| Filament Current | 10.5 A | 8.5 A - 11.5 A |
| Anode Voltage | 4.1 kV | 4.5 kV |
| Anode Current | 300 mA | 350 mA |
| Approx. Weight | 0.950 kg | |
| Air flow rate | 800 litre per minute |
