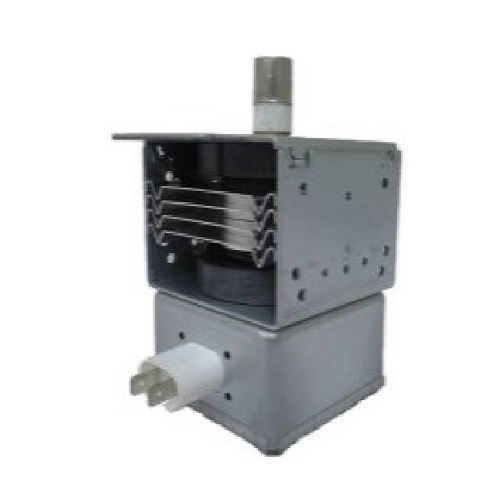

MX0300A

MX0300A

300W CW Magnetron

2450MHz(S-Band)    Forced air-cooled


MX0300A is forced air-cooled 2450MHz continuous wave magnetron.

It has ferrite Magnet & probe output which delivers the output upto 300W with matched load.

It has probe output & it is recommended to launch the output into the rectangular waveguide or into the oven cavity directly.

Category:

Description

Specifications

ParameterTypical RatingsMaximum Rating
Operational Frequency2460 MHz.2450 MHz - 2470 MHz
Output Power300 W
Filament Voltage
(Standby)
3.6 V3.25 V - 3.95 V
Filament Current10.5 A8.5 A - 12.5 A
Anode Voltage3.0 kV2.9 kV - 3.2 kV
Anode Current150 mA200 mA
Approx. Weight0.9 kg
Air flow rate1400 liter per minute
