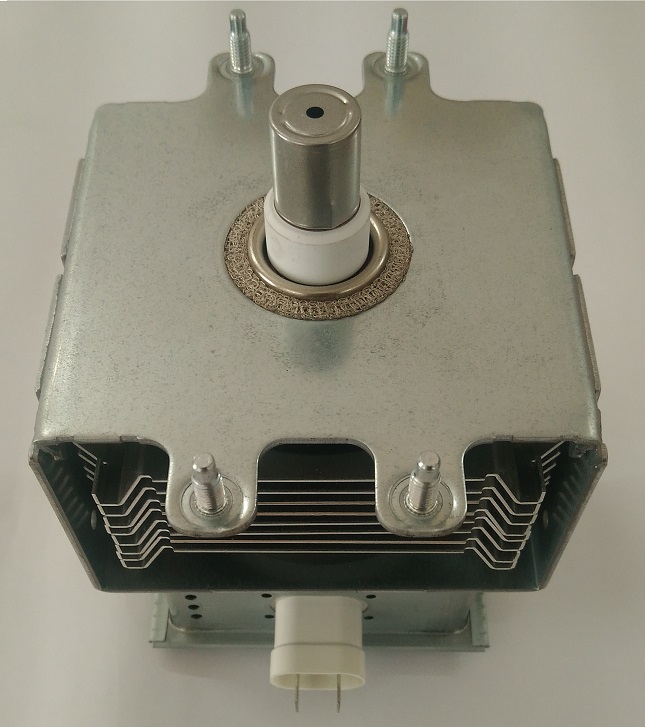

NL10254-IL

NL10254-IL

1450W CW Magnetron

2450MHz(S-Band)    Forced air-cooled


NL10254-IL is forced air-cooled 2450MHz continuous wave magnetron designed for industrial heating applications.

It has packaged Magnet & probe output which delivers the output upto 1450W with matched load.

It has mounting, air flow as well as connector in same directions.

It has probe output & it is recommended to launch the output into the rectangular waveguide or into the oven cavity directly.



Category:

Description

Specifications

ParameterTypical RatingsMaximum Ratings
Operational Frequency2455 MHz.2440 MHz - 2470 MHz
Output power1450 W1300 W (minimum)
Filament Voltage
(Standby)
4.6 V4.2 V - 5.0 V
Filament Current14 A13 A - 15 A
Anode Voltage4.5 kV4.2 kV - 4.7 kV
Anode Current450 mA500 mA
Approx. Weight1.5 kg
Air flow rate1500 liter per minute
