2450MHz(S-Band) Forced air-cooled

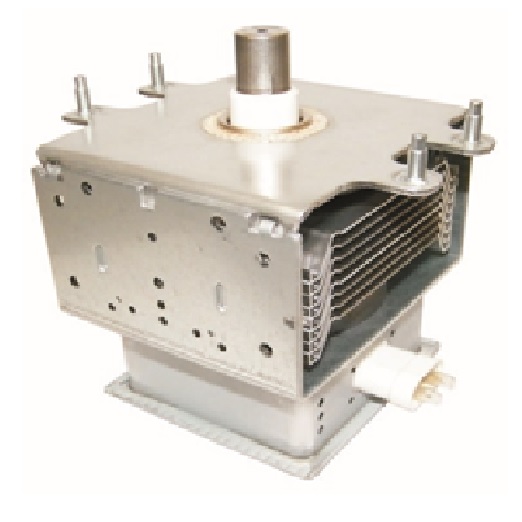

2M121A-53 is forced air-cooled 2450MHz continuous wave magnetron designed for industrial heating applications.
It has packaged Magnet & probe output which delivers the output upto 1450W with matched load.
It has probe output & it is recommended to launch the output into the rectangular waveguide or into the oven cavity directly.
It has mounting, air flow as well as connector in same directions.
| Parameter | Typical Ratings | Maximum Ratings |
|---|---|---|
| Operational Frequency | 2455 MHz. | 2440 MHz - 2470 MHz |
| Output power | 1450 W | 1300 W (minimum) |

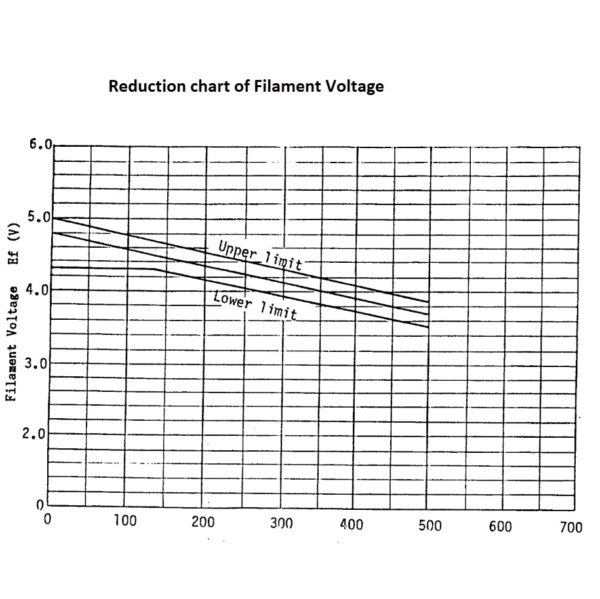

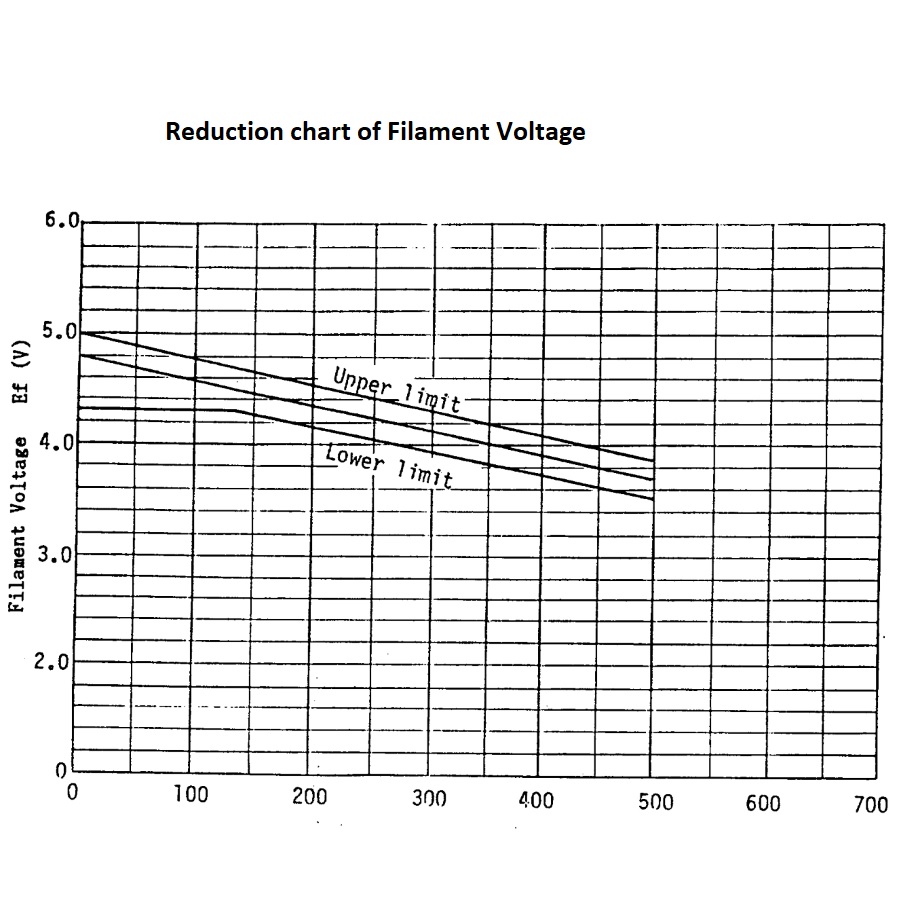

| Filament Voltage (Standby) | 4.6 V | 4.2 V - 5.0 V |
| Filament Current | 14 A | 13 A - 15 A |
| Anode Voltage | 4.5 kV | 4.2 kV - 4.7 kV |
| Anode Current | 450 mA | 500 mA |
| Approx. Weight | 1.5 kg | |
| Air flow rate | 1500 liter per minute |
