2450MHz(S-Band) water-cooled

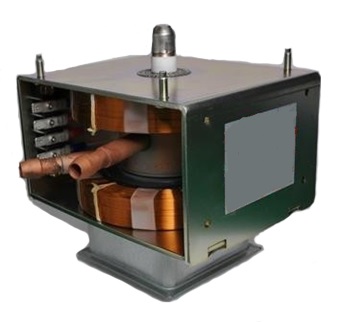

E3327 is water-cooled 2450MHz continuous wave magnetron designed for industrial heating applications.
It has packaged Magnet & probe output which can deliver the output upto 6000W with matched load.
it require the continuous water supply to maintain the anode temperature of the magnetron. It also require the forced air cooling for output antenna & filter box.
It has mounting, air flow are not in the direction of the connector.
It has probe output & it is recommended to use the circulator / isolator waveguide to match the load.

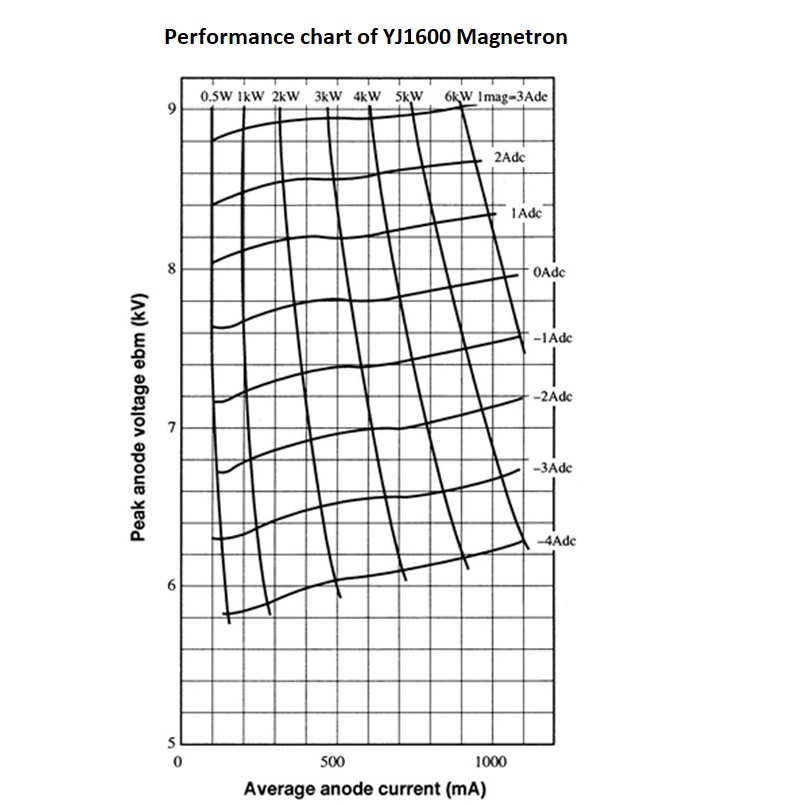

| Parameter | Typical Ratings | Maximum Rating |
|---|---|---|
| Operational Frequency | 2460 MHz | 2450 MHz - 2470 MHz |
| Output Power | 6 kW | 5 kW - 6 kW |
| Filament Voltage | 5.0 V | 4.50 V - 5.50 V |
| Filament Current | 33 A | |
| Anode Voltage | 7.2 kV | 8.0 kV |
| Anode Current | 950 mA - 1150 mA | 1350 mA |
| Approx. Weight | 4.3 kg | |
| Water flow rate | 5 litre per minute | 3 bar |
