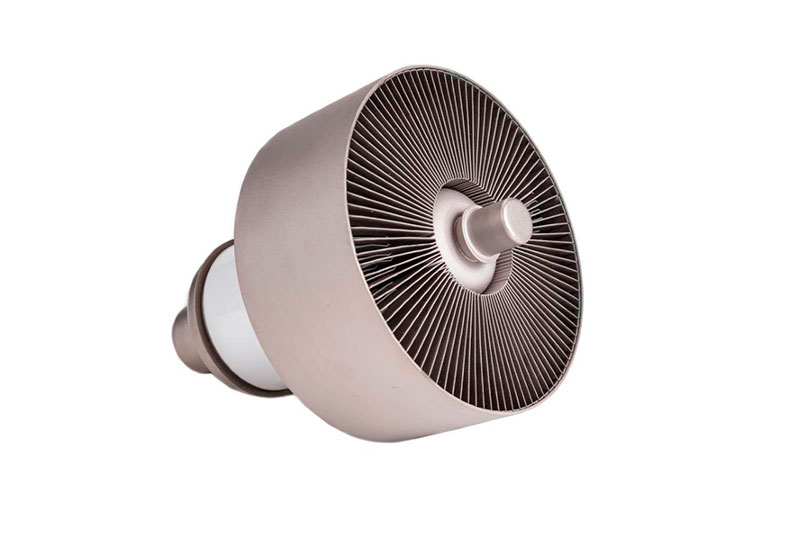

RS3040CL Triode

The triode is designed for RF industrial generators of frequency up to 100 MHz used for induction & Dielectric applications.

RF (radio frequency) textile / food drying machines

Induction hardening machines

Plastic welding machines

HF / RF High power generators for induction & dielectric heating applications

The tube is known by part number RS3040CL & AX3040CL.

To know more about this tube, please send us the product inquiry.

Description

Specifications
Output power	60 kW
Maximum frequency	100 MHz
Filament voltage	8.0 V
Filament current	185 A
Maximum anode voltage	15.0 kV
Maximum anode dissipation	25 kW
Maximum grid voltage	-1500 V
Maximum grid dissipation	0.82 kW
Amplification factor	20 µ
Cooling type	Forces Air
Maximum inlet water temperature	25°C
Maximum outlet water temperature	85°C
Maximum temperature at any place on triode	250°C
Overall weight	13.0 Kg

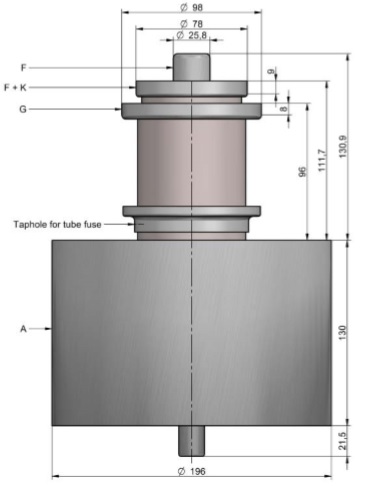

Overall diameter	196 mm
Overall length	282 mm
