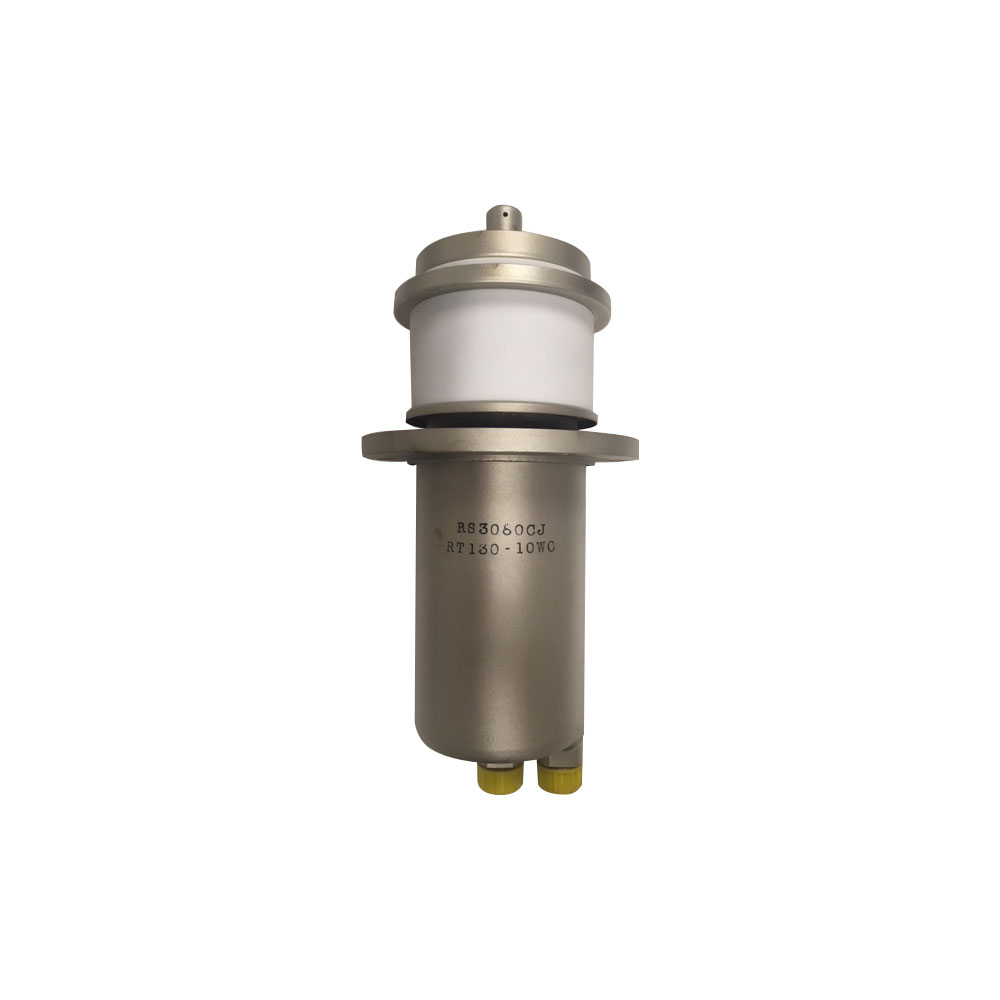

RS3080CJ Triode

The triode is designed for RF industrial generators of frequency up to 100 MHz used for induction & Dielectric applications.

RF (radio frequency) textile / food drying machines

Induction hardening machines

HF / RF High power generators for induction & dielectric heating applications

To know more about this tube, please send us the product inquiry.

Description

Specifications
Output power	130 kW
Maximum frequency	100 MHz
Filament voltage	11 V
Filament current	205 A
Maximum anode voltage	14.0 kV
Maximum anode dissipation	60 kW
Maximum grid voltage	-1500 V
Maximum grid dissipation	1.25 kW
Amplification factor	19 µ
Cooling type	Water
Maximum inlet water temperature	35°C
Maximum outlet water temperature	65°C
Maximum temperature at any place on triode	220°C
Overall weight	8.0 Kg

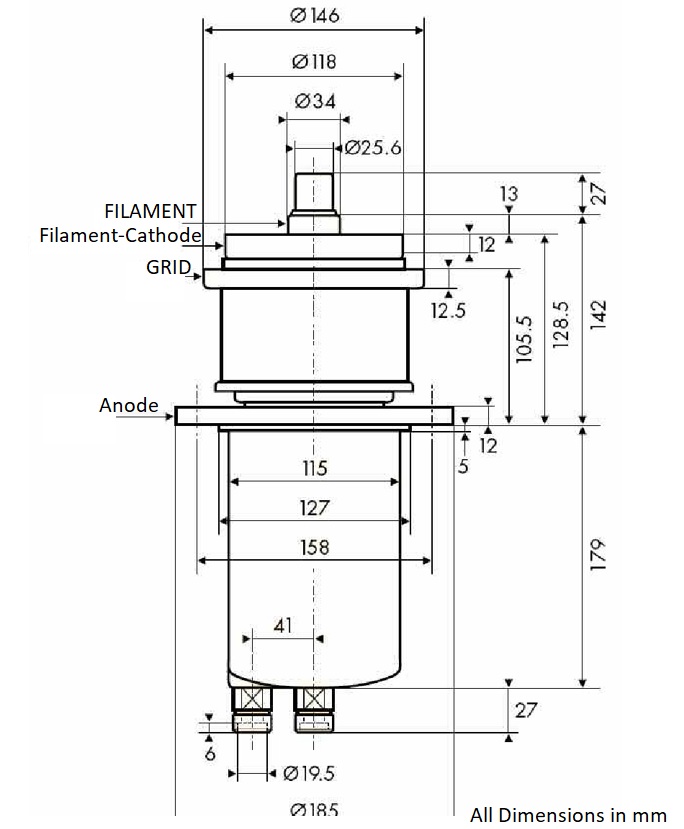

Overall diameter	185 mm
Overall length	375 mm
