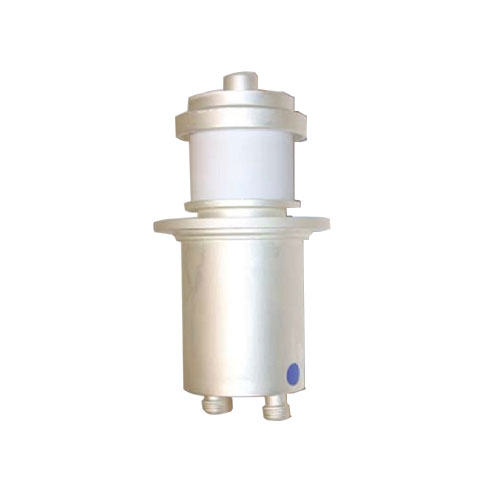

The triode is specially designed for industrial oscillation applications. It is widely used in the CO2 laser cutting machine of upto 4KW.
CO2 Laser cutting machines
HF / RF High power generators for induction & dielectric heating applications
The tube is known by part number RS3021CJ, AX3021CJ, EI3021CJ, 0120730, 1290700, 1347276, 1582540, 1800928, 1800961, 1800985, 1801047, 1803428. This triode is supplied with fixed water jacket & standard filament connections only.
To know more about this tube, please send us the product inquiry.
| Specifications | |
|---|---|
| Output power | 25 kW |
| Maximum frequency | 120 MHz |
| Filament voltage | 5.7 V |
| Filament current | 135 A |
| Maximum anode voltage | 14.0 kV |
| Maximum anode dissipation | 20 kW |
| Maximum grid voltage | -800 V |
| Maximum grid dissipation | 0.5 kW |
| Amplification factor | 36 µ |
| Cooling type | Water |
| Maximum inlet water temperature | 35°C |
| Maximum outlet water temperature | 65°C |
| Maximum temperature at any place on triode | 220°C |
| Overall weight | 4.1 Kg |

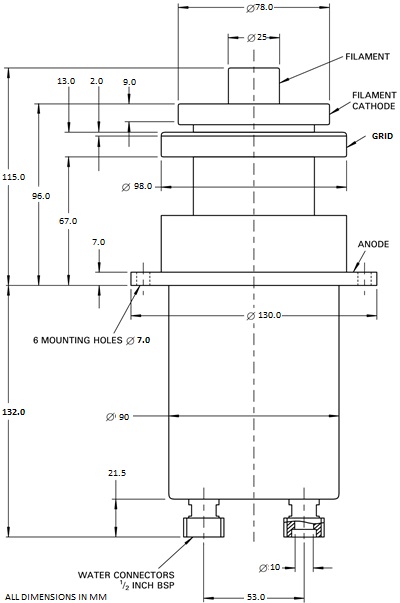

| Overall diameter | 130 mm |
| Overall length | 247 mm |
