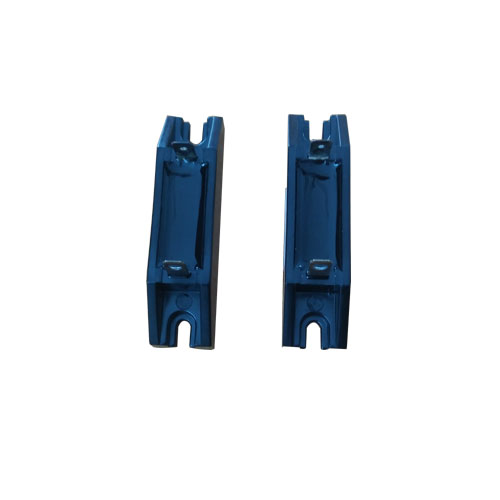

High voltage microwave diode
microwave diode 2

HV Diodes

High Voltage Diodes

We offers High voltage rectifier diode widely used in high voltage power supply for microwave, laser, x-ray, high frequency machine, radio frequency machine & other high voltage power supplies. These Diodes are sealed into a high insulating housing & can be mounted in any position. Our diodes are being used by our clients worldwide. We are thankful to our clients for their repeated business.

Diode features

Low leakage, resistant to surge ,resistant to shock.

Great avalanche voltage breakdown protection features.

High heat resistance, PN junction temperature peak 150℃

Environmentally friendly process, international standards

Using epoxy resin moulding vacuum package, with corrosion resistant surface

Categories: ,

Description

Specifications

Part No. Repetitive peak
reverse voltage
Vrrm in KV		Average forward
rectified current
Io in mA		Peak forward
surge current
Ifsm in A		Peak forward
voltage Max
Vfm in V		Maximum reverse current
Irµa Ta=25°C		Reverse recovery time
Trrns If=2mA
MXP-3/53500015042

-
MXP-5/25200010062-
MXP-5/35300012062-
MXP-10/2102000100122-
MXP-101075070112-
MXP-12127507013.52-
MXP-14147507015.52-
MXP-151575070172-
MXP-161675070182-
MXP-18187507019.52-
MXP-202075070222-

Applications

  • Industrial, civil & domestic Microwave high voltage power supply
  • laser power supply
  • X-ray
  • Industrial CT
  • high frequency machine
  • bent wood machine
  • High voltage  power supply for other applications.

Related Products

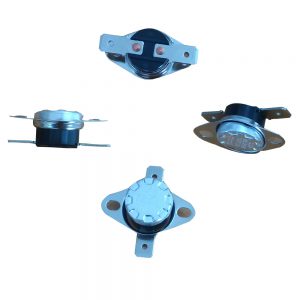

Microwave Thermoswitch

Read more

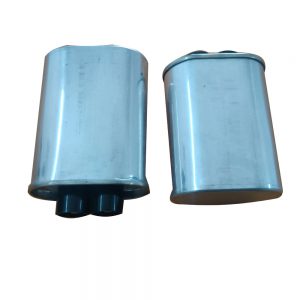

HV Capacitors
